NEWP® Launches 1200V Insulated Fast Recovery Diode – MURE60120APTI

NEWP® recently introduced the MURE60120APTI, a 1200V internally insulated fast recovery diode in a TO-247-2 package. Designed for applications such as UPS systems and EV charging stations, it meets the market's growing demand for high power density. While maintaining a standard-size package, it integrates a high thermal conductivity ceramic substrate to optimize both insulation and thermal performance, thereby enhancing overall product reliability.

Internal Structure Diagram of Internally Insulated TO-247-2 Package

1.High Switching Speed for Faster Response
2.High Power Density for Superior Performance
3.High Immunity to Interference for Stable Operation

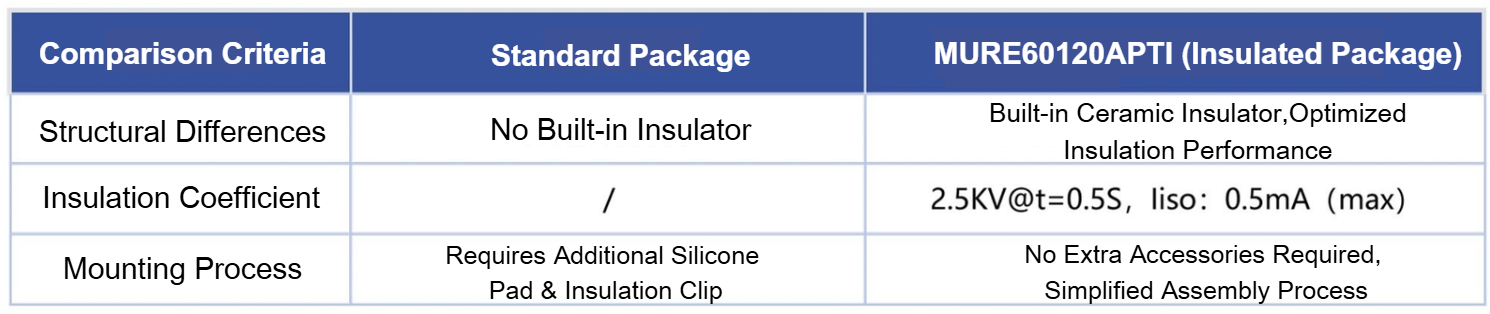

Differences from Standard Packages:

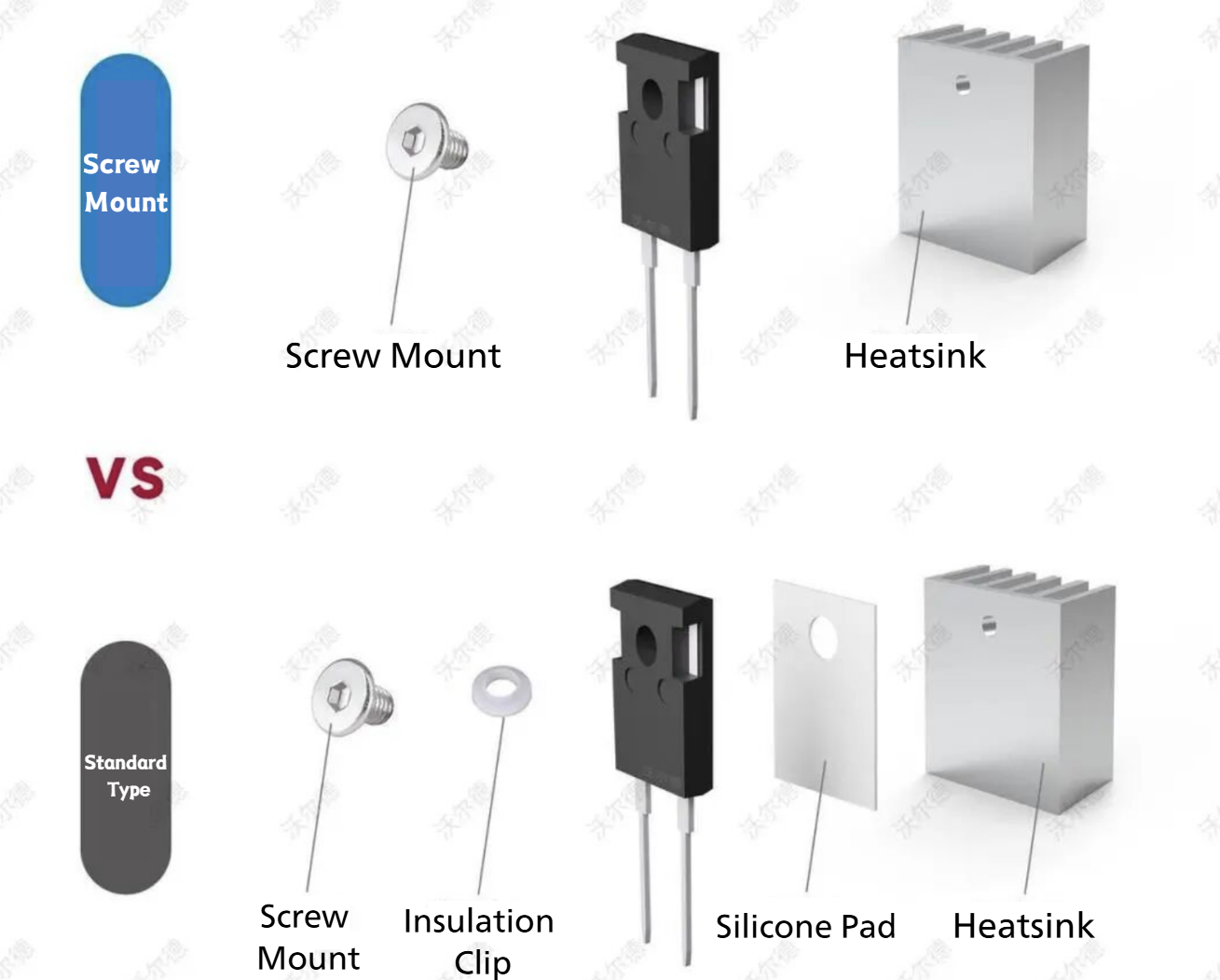

Installation Comparison Diagram

Value Proposition:

1.Cost Reduction: Eliminates the need to procure additional accessories, effectively reducing costs at the source.
2.Simplified Manufacturing: Reduces assembly steps, resulting in a more efficient and streamlined production process.
3.Superior Reliability: Mitigates the risk of insulation pad damage during assembly and avoids the reliability hazards associated with the high-temperature aging or cracking of external insulation materials.

Target Applications:
