Low VF Fast recovery Diode

Product Description

World LOW VF Fast recovery diode has low VF value and low leakage current, which is applied to PFC circuit, high-frequency and high-voltage circuit, and secondary rectifier circuit.

Product Feature

1
VF value
Low VF value
2
Leakage Current
Low leakage current
3
Switching Speed
Super fast switching speed

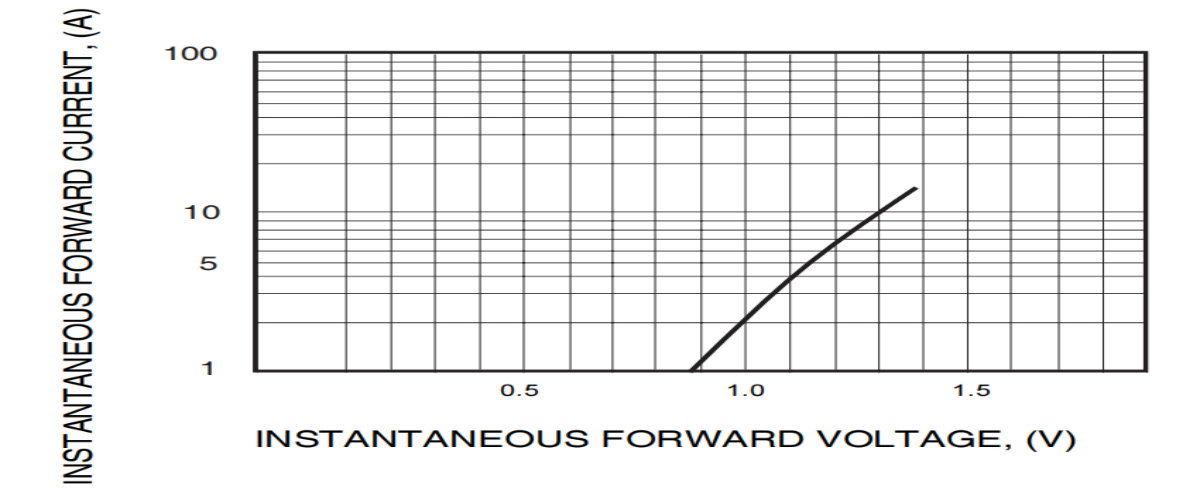

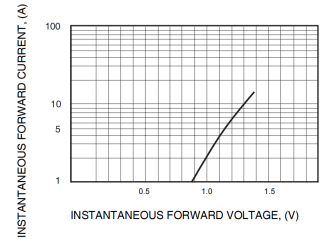

Product Curve Chart



                                       MURE10L60ACT

Application Field
Industrial power
Industrial power
Medical Power
Medical Power
LED power
LED power
PD3.1 Fast charger
PD3.1 Fast charger
Adapter
Adapter
Product selection

Model

Current(A)

Voltage(V)

Package

VF@I   25℃

VF@I   125℃

Trr(ns)

IR(uA)25℃

IR(mA)125℃

IFSM(A)

Tj(℃)

Download

MURE10L60ACT

10

600

TO-220ACT

1.3@5A

0.96@5A

35

5

0.25

150

-55 to +150

MURE10L60ACF

10

600

TO-220ACT

1.3@5A

0.96@5A

35

5

0.25

150

-55 to +150
