SiC MOS

Product Description

World silicon carbide MOS has low RDS (on) , high switching speed, high efficiency and reliability, and is packaged in TOLL, TO-247, etc.

Product Feature

1
RDS(on)
（RDS（on））Low on-resistance (RDS(on))
2
Switching speed
High switching speed

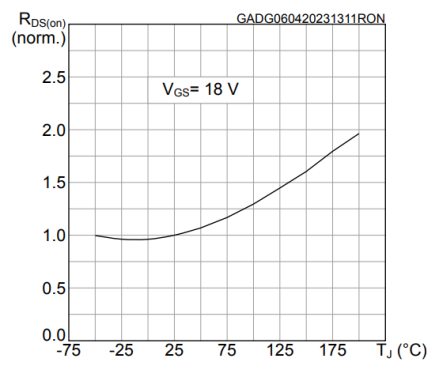

Product RDS（on）Curve Chart

Application Field

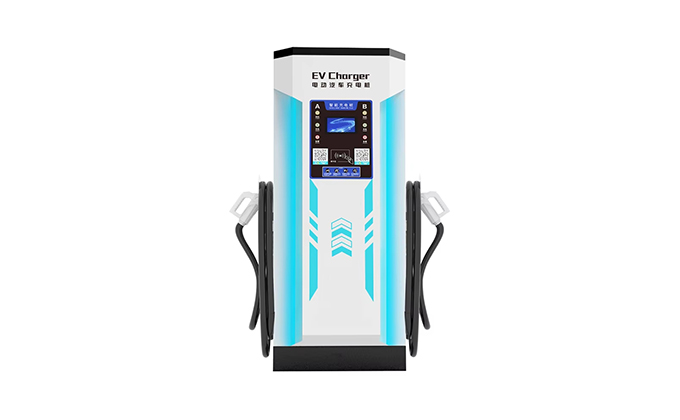

EV Charging pile
EV Charging pile

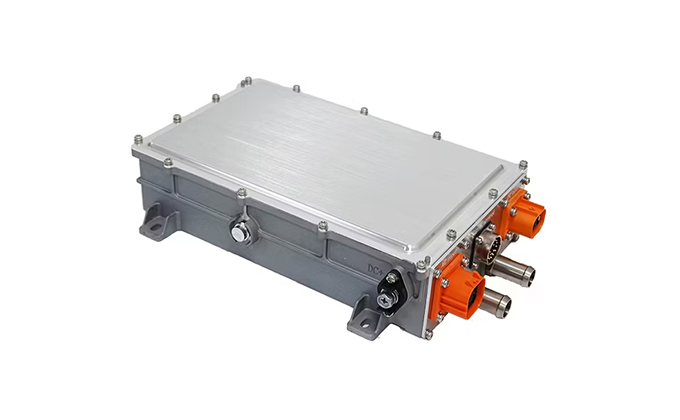

OBC
OBC
Product selection
Please contact our sales for detail models and datasheet!
