ESD

Product Description

Antistatic devices, ESD. For mainstream competing products, our company has alternative products, and we accept customized materials for ESD

Product Feature

1
ESD
ESD, (Transient Voltage Suppressor) (semiconductor) static suppressor, a miniaturized TVS, has the same characteristics and working methods as TVS. However, with the reduction of the internal chip area, it has the characteristics of small size, small capacitance value (capacitance and volume are proportional), and diverse packaging methods. It is mainly used for anti-static and anti-small pulse group processing of some small portable devices. For ESD TVS multi-channel protection products, they are also called array products (IC).

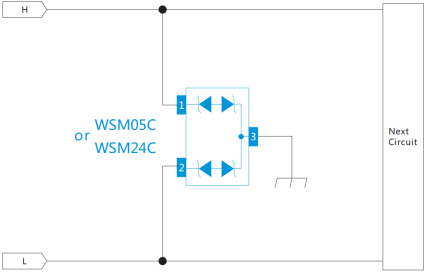

Application Circuit

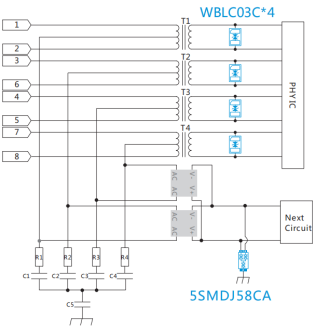

 RJ45-PoE                                                                                   CAN




                                   HDMI                                                    Type C                               USB3.0





Application Field
Laptop
Laptop
Mobile Phone
Mobile Phone
Two-wheeled Electric Vehicle
Two-wheeled Electric Vehicle
Earphone
Earphone
Audio
Audio
Product selection
For detailed specifications, please contact the sales staff.
N.O Hot Directional World P/N Package Marking PPP
(W)		 VRWM
(V)		 VBR
(V)		 VC
(V)		 IPP
(A)		 IR
(uA)		 Cj
(pF)		 Download
1   Bi. FSD3V31CUX-96 DFN0603 3BU 96 3.3 4.2 24 4 0.1 0.25
2 ※ Bi. FSD5V01CUX-100 DFN0603 5BU 100 5 6 25 4 0.1 0.25
3   Bi. FSD12V01CUX-64 DFN0603 12BU 64 12 13.3 32 2 0.5 0.25
4   Bi. FSD15V01CUX-70 DFN0603 15BU 70 15 16 35 2 0.5 0.25
5   Bi. FSD24V01CUX-38 DFN0603 24BU 38 24 26 38 1 0.5 0.3
6   Bi. FSD5V01CVX-35 DFN0603 Y 35 5 5.6 10.5 1 2 3
7   Bi. FSD3V31CLX-80 DFN0603 3BN 80 3.3 3.6 10 8 1 16.5
8   Bi. FSD5V01CLX-96 DFN0603 5BN 96 5 5.6 12 8 1 18
9 ※ Bi. FSD3V31CUY-84 DFN1006 3BU 84 3.3 4.2 21 4 0.1 0.25
10 ※ Bi. FSD5V01CUY-88 DFN1006 5BU 88 5 6 22 4 0.1 0.25
11   Bi. FSD5V01CUY-240 DFN1006 2BL 240 5 6 30 8 0.1 0.55
12   Bi. FSD12V01CUY-64 DFN1006 12BU 64 12 13.3 32 2 0.5 0.25
13   Bi. FSD15V01CUY-70 DFN1006 15BU 70 15 16 35 2 0.5 0.25
14   Bi. FSD24V01CUY-38 DFN1006 24BU 38 24 26 38 1 0.1 0.5
15 ※ Bi. FSD5V01CLY-100 DFN1006 PB 100 5 6 15 5 1 8
16   Bi. FSD3V31CLY-84 DFN1006 3PB 84 3.3 3.6 12 7 1 15
17 ※ Bi. FSD5V01CVY-28 DFN1006 5CU 28 5 5.6 14 2 1 3
18   Bi. FSD5V01CHY-300 DFN1006 H 300 5 5.8 20 20 1 30
19   Bi. FSD4V51CY-675 DFN1006 FWC 675 4.5 7.8 15 45 1 120
20   Bi. FSD5V01CY-675 DFN1006 FXC 675 5 5.6 15 45 1 105
21   Bi. FSD5V01CLY-150 DFN1006 FOC 150 5 5.6 16 9.4 1 10
22   Bi. FSD7V01CHY-150 DFN1006 HOC 150 7 7.5 19 8 0.2 25
23   Bi. FSD12V01CLY-150 DFN1006 MOC 150 12 13.3 26 5 0.2 13
24   Bi. FSD24V01CLY-100 DFN1006 DH 100 24 26 50 2 1 8
25   Bi. FSD24V01CLY-200 DFN1006 DH 200 24 26 50 3 1 13
26   Bi. FSD4V51CZ-3200 DFN1610-2L D4N 3200 4.5 4.6 20 160 1 300
27   Uni. FSD5V01UX-60 DFN0603 5L 60 5 6 15 4 0.1 0.6
28   Uni. FSD12V01UX-44 DFN0603 12L 44 12 13.2 22 2 0.1 0.6
29   Uni. FSD15V01UX-50 DFN0603 15L 50 15 16 25 2 0.1 0.6
30   Uni. FSD24V01UX-35 DFN0603 24L 35 24 26 35 1 0.1 0.6
31   Uni. FSD3V31UY-56 DFN1006 3L 56 3.3 4.2 14 4 0.1 0.5
32   Uni. FSD3V31UY-56 DFN1006 5L 60 5 6 15 4 0.1 0.5
33   Uni. FSD5V01Y-240 DFN1006 FQ 240 5 6 16 15 1 130
32   Uni. FSD3V31Y-105 DFN1006 YA 105 3.3 5 11.5 7.5 2.5 105
33   Uni. FSD5V01HY-105 DFN1006 YB 105 5 6.2 15 7 1 80
34   Uni. FSD8V01HY-108 DFN1006 YC 108 8 8.5 18 6 1 65
35   Uni. FSD12V01HY-104 DFN1006 YD 104 12 13.3 26 4 1 45
36   Uni. FSD15V01HY-120 DFN1006 YE 120 15 16 30 4 1 28
37   Uni. FSD36V01HY-120 DFN1006 YN 55 36 40 55 1 5 28
38   Uni. FSD3V31Y-350 DFN1006 03W 350 3.3 4 14 20 5 450
39   Uni. FSD5V01Y-350 DFN1006 05W 350 5 6 18 17 2 300
40   Uni. FSD8V01Y-350 DFN1006 08W 350 8 8.5 24 15 1 240
41   Uni. FSD12V01Y-350 DFN1006 12W 350 12 13.3 32 11 1 130
42   Uni. FSD15V01Y-350 DFN1006 15W 350 15 16.7 38 10 1 120
43   Uni. FSD18V01Y-350 DFN1006 18W 350 18 20 45 9 1 100
44   Uni. FSD24V01HY-350 DFN1006 24W 350 24 26.7 52 7 1 80
45   Uni. FSD36V01HY-350 DFN1006 36W 350 36 40 75 5 1 60
46   Uni. FSD4V51Z-3400 DFN1610-2L H4N 3400 4.5 7 20 170 0.1 400
47   Uni. FSD5V01Z-1350 DFN1610-2L FS 1350 5 6 15 90 2 800
48   Uni. FSD5V01Z-2730 DFN1610-2L H5N 2730 5 6 21 130 1 1000
49   Uni. FSD10V01Z-1950 DFN1610-2L H10N 1950 10 12.5 26 75 0.1 600
50   Uni. FSD12V01Z-2275 DFN1610-2L MT 2275 12 12.7 35 65 0.1 510
51   Uni. FSD15V01Z-1575 DFN1610-2L H15N 1575 15 19 35 45 0.1 350
52   Uni. FSD18V01Z-1480 DFN1610-2L H18N 1480 18 24 37 40 0.1 350
53   Uni. FSD20V01Z-1980 DFN1610-2L H20N 1980 20 25.5 44 45 0.1 250
54   Uni. FSD24V01Z-1440 DFN1610-2L H24N 1440 24 29 48 30 0.1 220
55   Uni. FSD3V32UY-56 DFN1006-3L 32L 56 3.3 4.2 14 4 0.1 0.5
56   Uni. FSD5V02UY-60 DFN1006-3L 52L 60 5 6 15 4 0.1 0.4
57   Bi. FSD3V32CLY-80 DFN1006-3L 32BN 80 3.3 3.6 10 8 1 16.5
58   Bi. FSD5V02CLY-72 DFN1006-3L 52BN 72 5 5.6 12 6 1 18
59 ※ Bi. FSD3V31CLJ-33 SOD-923 E4 33 3.3 5 19 2.3 2.5 18
60 ※ Bi. FSD5V01CLJ-33 SOD-923 9C or C2 - 5 5.6 - - 1 13
61   Uni. FSD3V31UD5-56 SOD-523 3L 56 3.3 4.2 14 4 0.1 0.5
62   Uni. FSD5V01UD5-56 SOD-523 5L 60 5 6 15 4 0.1 0.5
63 ※ Uni. FSD2V51D5-120 SOD-523 ZD+ Code 120 2.5 4 10.9 11 6 145
64 ※ Uni. FSD3V31D5-158 SOD-523 ZE+ Code 158 3.3 5 14.1 11.2 0.9 105
65 ※ Uni. FSD5V01HD5-174 SOD-523 ZF+ Code 174 5 6.2 18.6 9.4 0.08 80
66 ※ Uni. FSD7V01HD5-200 SOD-523 ZH+ Code 200 7 7.5 22.7 8.8 0.03 65
67 ※ Uni. FSD12V01HD5-174 SOD-523 ZM+ Code 174 12 14.1 29 6 0.02 35
68 ※ Uni. FSD15V01HD5-120 SOD-523 ZN+ Code 120 15 16 30 4 0.5 28
69 ※ Uni. FSD24V01HD5-120 SOD-523 5S 120 24 26.7 35 1 5 50
70 ※ Uni. FSD36V01HD5-120 SOD-523 5Y or  ZS 120 36 40 55 1 5 28
71   Uni. FSD3V31D5-350 SOD-523 03W 350 3.3 4 14 20 5 450
72   Uni. FSD5V01D5-350 SOD-523 05W 350 5 6 18 17 2 300
73   Uni. FSD8V01D5-350 SOD-523 08W 350 8 8.5 24 15 1 240
74   Uni. FSD12V01D5-350 SOD-523 12W 350 12 13.3 32 11 1 130
75   Uni. FSD15V01D5-350 SOD-523 15W 350 15 16.7 38 10 1 120
76   Uni. FSD18V01D5-350 SOD-523 18W 350 18 20 45 9 1 100
77   Uni. FSD24V01HD5-350 SOD-523 24W 350 24 26.7 52 7 1 80
78   Uni. FSD36V01HD5-350 SOD-523 36W 350 36 40 75 5 1 60
79   Uni. FSD3V31UD3-56 SOD-323 3L 56 3.3 4.2 14 4 0.1 0.5
80   Uni. FSD5V01UD3-56 SOD-323 5L 60 5 6 15 4 0.1 0.5
81   Uni. FSD3V31D3-350 SOD-323 03W 350 3.3 4 10.5 20 40 450
82   Uni. FSD5V01D3-350 SOD-323 05W 350 5 6 18 17 10 300
83   Uni. FSD8V01D3-350 SOD-323 08W 350 8 8.5 24 15 1 240
84   Uni. FSD12V01D3-350 SOD-323 12W 350 12 13.3 32 11 1 130
85   Uni. FSD15V01D3-350 SOD-323 15W 350 15 16.7 38 10 1 120
86   Uni. FSD20V01HD3-350 SOD-323 20W 350 20 22.3 50 8 1 90
87   Uni. FSD24V01HD3-350 SOD-323 24W 350 24 26.7 52 7 1 80
88   Uni. FSD36V01HD3-350 SOD-323 36W 350 36 40 75 5 1 60
89   Uni. FSD5V01D3-1620 SOD-323 FD 1620 5 6 18 90 2 800
90   Uni. FSD5V01D3-2800 SOD-323 5H 2800 5 6 20 140 1 980
91   Uni. FSD7V01D3-2625 SOD-323 H7 2625 7 7.5 25 105 1 400
92   Uni. FSD12V01D3-1540 SOD-323 H12 1540 12 13.5 28 55 1 350
93   Uni. FSD15V01D3-1800 SOD-323 H15 1800 15 16 30 60 1 330
94   Uni. FSD5V01D3-2730 SOD-123 H5 2730 5 9 21 130 1 1000
95   Uni. FSD12V01D3-625 SOD-123 12Z 625 12 15.5 25 25 1 160
96   Uni. FSD12V01D3-2275 SOD-123 MT 2275 12 15.5 35 65 1 510
97   Uni. FSD20V01D3-1980 SOD-123 H20 1980 20 25.5 44 45 1 300
98   Uni. FSD5V01D3-1980 SOD-123FL AE 1980 5 7 18 110 5 1100
99   Uni. FSD9V01D3-2080 SOD-123FL KV 2080 9 11.1 26 80 5 700
100   Uni. FSD12V01D3-5600 SOD-123 LE-T 5600 12 13 28 200 1 450
101   Uni. FSD24V01D3-4900 SOD-123FL 24A-T 4900 24 29 34 150 1 590
102 ※ Bi. FSD5V01CVD5-35 SOD-523 LB 35 5 5.6 10.5 1 2 3.0
103 ※ Bi. FSD5V01CVD5-40 SOD-523 LB 40 5 5.2 9 1 2 4.5
104   Bi. FSD5V01CUD5-240 SOD-523 L5 240 5 6 30 8 0.1 0.5
105   Bi. FSD5V01CUD5-100 SOD-523 5G 100 5 6 25 4 0.1 0.25
106   Bi. FSD3V31CLD5-84 SOD-523 3C+ Code 84 3.3 4 12 7 1 12
107   Bi. FSD2V51CHD5-300 SOD-523 2C 300 2.5 3.5 15 20 1 45
108 ※ Bi. FSD5V01CLD5-100 SOD-523 5C+ Code 100 5 5.6 16 8 1 10
109   Bi. FSD3V31CHD5-300 SOD-523 3CM 300 3.3 3.6 15 20 1 43
110   Bi. FSD5V01CHD5-300 SOD-523 ɔc 300 5 5.8 20 20 1 30
111   Bi. FSD3V31CUD3-84 SOD-323 3BU 84 3.3 4.2 21 4 0.1 0.5
112   Bi. FSD5V01CUD3-88 SOD-323 5BU 88 5 6 22 4 0.1 0.5
113 ※ Bi. FSD5V01CLD3-100 SOD-323 3M or AC 100 5 5.6 16 8 1 10
114   Bi. FSD12V01CLD3-360 SOD-323 2D 360 12 14.5 30 12 1 12
115 ※ Bi. FSD3V31CHD3-350 SOD-323 2A 350 3.3 3.6 15 25 1 43
116 ※ Bi. FSD5V01CD3-400 SOD-323 5/5 400 5 5.8 20 25 1 30
117   Bi. FSD3V31CD3-350 SOD-323 2A 350 3.3 4 13 20 40 450
118 ※ Bi. FSD5V01CD3-350 SOD-323 2B 350 5 6 18 17 10 200
119   Bi. FSD8V01CD3-350 SOD-323 2C 350 8 8.5 24 15 2 120
120 ※ Bi. FSD12V01CHD3-350 SOD-323 2D 350 12 13.3 32 11 1 75
121   Bi. FSD15V01CHD3-350 SOD-323 2J 350 15 16.7 38 10 1 68
122   Bi. FSD18V01CHD3-350 SOD-323 2K 350 18 20 45 9 1 57
123   Bi. FSD20V01CHD3-350 SOD-323 2L 350 20 22.3 50 8 1 52
124 ※ Bi. FSD24V01CHD3-350 SOD-323 2H 350 24 26.7 52 7 1 50
125   Bi. FSD36V01CHD3-350 SOD-323 2N 350 36 40 75 5 1 35
126   Bi. FSD4V51CD3-3200 SOD-323 D4 3200 4.5 4.6 20 160 1 300
127   Bi. FSD5V01CD3-2080 SOD-323 D5 2080 5 5.3 16 130 1 450
128   Bi. FSD3V31CHD1-500 SOD-123 2A 500 3.3 6 18 28 1 45
129   Bi. FSD7V01CF1-3600 SOD-123FL AM. 3600 7 8 18 200 1 520
130   Bi. FSD12V01CF1-5600 SOD-123FL BE 5600 12 13 28 200 1 450
131   Bi. FSD15V01CF1-4560 SOD-123FL GM 4560 15 18.5 38 120 1 300
132   Bi. FSD18V01CF1-2660 SOD-123FL GT 2660 18 22.1 38 70 1 250
133   Bi. FSD24V01CF1-3380 SOD-123FL GZ 3380 24 29.5 52 65 1 200
134   Uni. FSD5V02UU3-60 SOT-523 52L 60 5 6 15 4 0.1 0.5
135   Uni. FSD5V02UW3-60 SOT-323 52L 60 5 6 15 4 0.1 0.5
136   Uni. FSD3V32UP-56 SOT-23 32L 56 3.3 4.2 14 4 0.1 0.5
137 ※ Uni. FSD5V02UP-60 SOT-23 52L 60 5 6 15 4 0.1 0.5
138   Uni. FSD5V01UP-350 SOT-23   350 5 6 20 18 1 0.4
139 ※ Uni. FSD3V32P-350 SOT-23 M03 350 3.3 4 10.5 20 40 450
140 ※ Uni. FSD5V02P-350 SOT-23 M03 350 5 6 18 17 10 300
141   Uni. FSD8V02P-350 SOT-23 M08 350 8 8.5 24 15 2 240
142 ※ Uni. FSD12V02P-350 SOT-23 M12 350 12 13.3 32 11 1 130
143   Uni. FSD15V02P-350 SOT-23 M15 350 15 16.7 38 10 1 120
144 ※ Uni. FSD18V02P-350 SOT-23 M18 350 18 20 45 9 1 100
145   Uni. FSD20V02HP-350 SOT-23 M20 350 20 22.3 50 8 1 90
146 ※ Uni. FSD24V02HP-350 SOT-23 M24 350 24 26.7 52 7 1 80
147 ※ Uni. FSD36V02HP-350 SOT-23 M36 350 36 40 75 5 1 60
148   Uni. FSD12V02P-550 SOT-23 12C 550 12 13.3 25 22 1 110
149 ※ Uni. MMBZ5V7AL SOT-23 5A6 24 3 5.6 8 3 5 -
150 ※ Uni. MMBZ6V3AL SOT-23 6A2 24 3 6.2 8.7 2.76 0.5 -
151 ※ Uni. MMBZ6V9AL SOT-23 6A8 24 4.5 6.8 9.6 2.5 0.5 -
152 ※ Uni. MMBZ13VAL SOT-23 12A 40 8.5 12 17 2.35 0.2 -
153 ※ Uni. MMBZ16VAL SOT-23 15A 40 12 15 21 1.9 0.05 -
154 ※ Uni. MMBZ19VAL SOT-23 18A 40 14.5 18 25 1.6 0.05 -
155 ※ Uni. MMBZ28VAL SOT-23 27A 40 22 22 40 1 0.05 -
156 ※ Uni. FSD15V02HP-100 SOT-23 Tu3 '53' 100 15 17.1 33 3 1 80
157 ※ Uni. FSD24V02HP-50 SOT-23 Tu4 '53' 100 24 25.7 50 2 1 50
158 ※ Bi. FSD3V31CVD3-150 SOD-323 CA1 150 3.3 3.5 15 10 0.5 1
159   Bi. FSD3V31CUD3-350 SOD-323 CC. 350 3.3 3.5 18 20 0.5 0.6
160 ※ Bi. FSD3V01CUD3-350 SOD-323 CC 350 3 4 20 20 5 0.8
161 ※ Bi. FSD5V01CUD3-350 SOD-323 AC 350 5 6 20 18 1 0.8
162   Bi. FSD8V01CUD3-350 SOD-323 BC 350 8 8.5 24 18 1 0.8
163 ※ Bi. FSD12V01CUD3-350 SOD-323 DC 350 12 13.3 28.6 12 1 0.8
164   Bi. FSD15V01CUD3-350 SOD-323 EC 350 15 16.7 31.8 10 1 0.8
165 ※ Bi. FSD24V01CUD3-350 SOD-323 HC 350 24 26.7 56 6 1 0.8
166   Bi. FSD36V01CUD3-350 SOD-323 IC 350 36 40 75 4.5 1 0.8
167 ※ Bi. FSD3V01CUD3-300 SOD-323 CC 300 3 4 13.9 8 2 0.8
168 ※ Bi. FSD5V01CUD3-300 SOD-323 AC 300 5 6 18.3 8 1 0.8
169 ※ Bi. FSD8V01CUD3-300 SOD-323 BC 300 8 8.5 18.5 8 1 0.8
170 ※ Bi. FSD12V01CUD3-300 SOD-323 DC 300 12 13.3 28.6 6 1 0.8
171 ※ Bi. FSD15V01CUD3-300 SOD-323 EC 300 15 16.7 31.8 5 1 0.8
172 ※ Bi. FSD24V01CUD3-300 SOD-323 HC 300 24 26.7 56 3 1 0.8
173   Bi. FSD3V01CUD3-350T SOD-323 C 350 3 4 20 20 5 0.8
174   Bi. FSD5V01CUD3-350T SOD-323 A 350 5 6 20 18 1 0.8
175   Bi. FSD8V01CUD3-350T SOD-323 B 350 8 8.5 24 18 1 0.8
176   Bi. FSD12V01CUD3-350T SOD-323 D 350 12 13.3 28.6 12 1 0.8
177   Bi. FSD15V01CUD3-350T SOD-323 E 350 15 16.7 31.8 10 1 0.8
178   Bi. FSD24V01CUD3-350T SOD-323 H 350 24 26.7 56 6 1 0.8
179   Bi. FSD15V01CHD3-160 SOD-323 24 160 15 20.5 44 5 5 30
180 FSD24V01CHD3-160 160 24 30.5 70 3 5 30
181 ※ Bi. FSD5V02CUK-125 SOT-143 R05 125 5 6 25 5 1 0.9
182 ※ Bi. FSD24V02CHP-350 SOT-23 271+code 350 24 26.2 46 5 0.1 25
183   Bi. FSD5V02CVU3-28 SOT-523 52CU 28 5 5.6 14 2 1 3
184   Bi. FSD5V02CVP-28 SOT-23 1UW 28 5 5.6 14 2 1 3
185   Bi. FSD3V32CP-350 SOT-23 C03 350 3.3 4 13 20 40 450
186 ※ Bi. FSD5V02CP-350 SOT-23 C05 350 5 6 18 17 10 200
187   Bi. FSD8V02CP-350 SOT-23 C08 350 8 8,5 24 15 2 120
188   Bi. FSD12V02CHP-350 SOT-23 C12 350 12 13.3 32 11 1 75
189   Bi. FSD15V02CHP-350 SOT-23 C15 350 15 16.7 38 10 1 68
190   Bi. FSD18V02CHP-350 SOT-23 C18 350 18 20 45 9 1 57
191   Bi. FSD20V02CHP-350 SOT-23 C20 350 20 22.3 50 8 1 52
192 ※ Bi. FSD24V02CHP-350 SOT-23 C24 350 24 26.7 52 7 1 50
193   Bi. FSD36V02CHP-350 SOT-23 C36 350 36 40 75 5 1 35
194   Bi. FSD3V32CHP-350 SOT-23 3CM 500 3.3 3.6 18 34 1 75
195   Bi. FSD5V02CHP-350 SOT-23 5CM 500 5 5.6 22 23 1 65
196   Bi. FSD5V02CLP-130 SOT-23 CO05 130 5 5.6 16 8 1 15
197   Bi. FSD12V02CLP-130 SOT-23 CO12 130 12 13.3 26 5 0.2 15
198   Bi. FSD15V02CLP-130 SOT-23 CO15 130 15 16.5 32 3.5 0.5 15
199 ※ Bi. FSD24V02CLP-130 SOT-23 CO24 130 24 26 2.5 48 0.5 12
200   Bi.   SOT-23 15QC -- 15 -- -- -- -- --
201 ※ Bi. FSD24V02CLP-200 SOT-23 C24 200 24 26 50 3 1 13
202 ※ Bi. FSD712V02CHP-400 SOT-23 712 400 12/7 13.3
/7.5		 26/12 17 1/20 75
203   Bi. FSD5V02CUP-350 SOT-23 T2S 350 5 6 11 5 1 0.8
204   Bi. FSD12V02CUP-350 SOT-23 DJ2 350 12 13.3 24 5 1 0.8
205   Bi. FSD15V02CUP-350 SOT-23 DJ5 350 15 16.7 30 5 1 0.8
206   Bi. FSD24V02CUP-350 SOT-23 DJ4 350 24 26.7 55 5 1 0.8
207   Bi. FSD4V51CN3-4800 DFN2020-3L T45 008 4800 4.5 4.6 20 240 1 400
208   Uni. FSD7V51N3-6000 DFN2020-3L T07 003 6000 7.5 8 25 240 1 1700
209   Uni. FSD12V01N3-5760 DFN2020-3L T12 003 5760 12 13 32 180 1 950
210   Uni. FSD15V01N3-6480 DFN2020-3L T15 003 6480 15 16 36 180 1 900
211   Uni. FSD18V01N3-4900 DFN2020-3L T18 018 4900 18 19 35 140 1 900
212   Uni. FSD20V01N3-8800 DFN2020-3L T20 003 8800 20 21 55 160 1 400
213   Uni. FSD5V05VW5-60 SOT-353 54L 60 5 6 15 4 1 1.5
214   Uni. FSD5V05VU5-60 SOT-553 54L 60 5 6 15 4 1 1.5
215   Bi. FSD3V36CHQ-350 SOT-26 C3/C3 350 3.3 3.5 13 27 0.1 35
216   Uni. FSD3V36Q-512 SOT-26 03/03 512 3.3 4 16 32 0.1 450
217   Uni. FSD5V06Q-500 SOT-26 05/05 500 5 6 18.5 27 0.1 300
218   Uni. FSD12V06Q-392 SOT-26 12/12 392 12 13.3 28 14 0.1 130
219   Uni. FSD15V06Q-384 SOT-26 15/15 384 15 16.7 32 12 0.1 120
220   Uni. FSD24V06HQ-360 SOT-26 24/24 360 24 26.7 45 8 0.1 80
221   Uni. FSD5V06VU6-60 SOT-563 55L 60 5 6 15 4 1 1.5
222   Uni. FSD5V06VW6-60 SOT-363 F54 60 5 6 15 4 1 1.5
223   Uni. FSD3V36Q-512C SOT-26 C03 512 3.3 4 16 32 0.1 450
224   Uni. FSD5V06Q-500C SOT-26 C05 500 5 6 18.5 27 0.1 300
225   Uni. FSD12V06Q-392C SOT-26 C12 392 12 13.3 28 14 0.1 130
226   Uni. FSD15V06Q-384C SOT-26 C15 384 15 16.7 32 12 0.1 120
227   Uni. FSD24V06HQ-360C SOT-26 C24 360 24 26.7 45 8 0.1 80
228   Uni. FSD5V06UW6-50 SOT-363 F54 50 5 6 13 4 1 0.8
229 ※ Uni. FSD3V36UQ-60 SOT-26 V03 60 3.3 4.2 14 4 1 0.6
230   Uni. FSD5V06UQ-60 SOT-26 V05 60 5 6 15 4 1 0.6
231   Uni. FSD5V06VQ-625 SOT-26 V54 625 5 6 25 25 1 1.2
232   Uni. FSD5V06UQ-60T SOT-26 C16 60 5 6 15 4 1 0.55
233   Uni. FSD5V06UU6-60 SOT-563 F 60 5 6 28 5 1 0.45
234   Uni. FSD5V06UQ-60H SOT-26 UL26 60 5 6 28 5 1 0.45
235   Uni. FSD5V04UQ-150 SOT-26 S05 150 5 6 15 6 1 0.8
236   Uni. FSD5V06UZ6-60 DFN1610-6L 0522P 60 5 6 15 4 0.1 0.4
237   Bi. FSD5V06CUZ6-60 DFN1610-6L 0522SP 60 5 6 15 4 0.1 0.2
238   Uni. FSD3V35U-56 DFN2510 3324P 56 3.3 4.2 14 4 1 0.4
239 ※ Uni. FSD5V05U-50 DFN2510 0524P 50 5 6 10 1 1 0.5
240 ※ Bi. FSD5V05CU-50 DFN2510 T54SP - 5 7 12 1 1 0.2
241   Uni. FSD24V05L-90 DFN2510 2404O 90 24 26 45 2 1 15
242   Bi. FSD24V05CL-90 DFN2510 2404OC 90 24 26 45 2 1 8
243   Bi. FSD5V05CL-90 DFN2510 5B04O 90 5 5.6 15 6 0.5 15
244   Bi. FSD24V05CL-140 DFN2510 524BO 140 24 26 50 2.8 0.5 15
FSD5V05CL-90 90 5 5.6 15 6 0.5 15
245   Uni. FSD24V05H-140 DFN2510 5B24O 140 24 26 50 2.8 0.5 25
Bi. FSD5V05CL-90W 90 5 5.6 15 6 0.5 15
246   Uni. FSD28V05L-138 DFN2510 5B28O 138 28 30 55 2.5 0.1 18
Bi. FSD5V05CL-90M 90 5 30 15 6 0.1 15
247   Uni. FSD5V05UV5-60 DFN1308-5L 54L 60 5 6 15 4 1 0.4
248   Uni. FSD5V05UO5-60 DFN2010-5L 54L 60 5 6 15 4 1 0.4
249   Bi. FSD5V06CHM6-150 DFN1616-6L 55O 150 5 6 15 10 1 100
250   Bi. FSD2V54CUO8-270 DFN2010-8L 2502CW 270 2.5 3.5 18 15 0.1 0.8
251   Bi. FSD5V06CUO5-60 DFN2010-5L 54BU 60 5 6 15 4 1 0.2
252   Uni. FSD5V05UO10-60 DFN2010-10L 0544T 60 5 6 15 4 1 0.4
253   Uni. FSD5V09UL9-60 DFN3810-9L 0508P 60 5 6 15 4 1 0.4
254   Uni. FSD5V08UH10-60 DFN4120-10L 56L 60 5 6 15 4 1 0.4





To be the Global Innovation Leader in Discrete Devices ! Driving the global electronics industry towards green and efficient development with innovative design and advanced technology.
Contact US
  • 2nd Floor,Building A3,Zhongjiao Science And Technology Park,Longgang District,Shenzhen,Guangdong,China
  • 0086-755-82682846
  • sales@worldgj.com
  • www.worldgj.com
  • Online Message
Product
Quality&System
About US
Contact US
COPYRIGHT © 2023 Shenzhen World Industrial Co.,Ltd ALL RIGHTS RESERVED. 粤ICP备17045933号   Support: Fangwei
Follow US
