TSS

Product Description

Thyristor Surge Suppressors,TSS. All products are available

Product Feature

1
TSS
TSS is a PNPN component, a free voltage-controlled thyristor without a gate electrode. When the voltage exceeds its peak off-state voltage (or avalanche voltage), semiconductor discharge will clamp the transient voltage to the switching voltage (or turning voltage) value of the component. As the voltage continues to increase, the semiconductor discharge tube enters the conducting state due to negative resistance effect. Only when the current is less than the maintenance current, the component resets and returns to its high impedance state.

Application Circuit

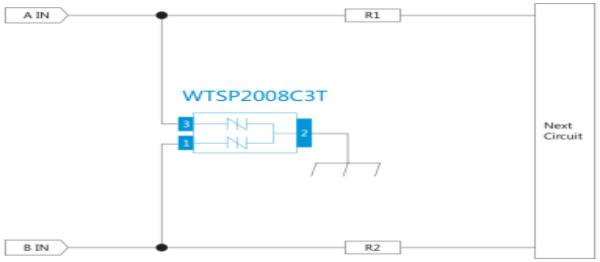

RS485

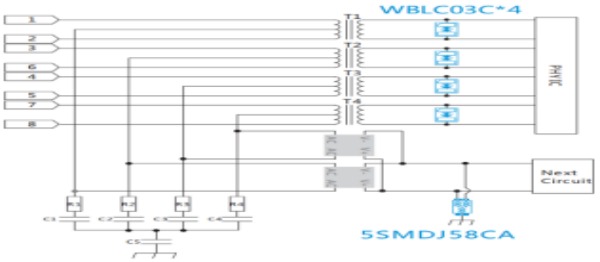

RJ45-PoE

Application Field
Electronically Adjustable Antenna
Electronically Adjustable Antenna
Filter
Filter
Voice Switch
Voice Switch
RRU
RRU
Product selection
详细规格书请咨询销售人员
Product Name Package Polarity Status VDRM_Max (V) IDRM_Max (μA) @ VDRM (V) VS_Max (V) @ IS (mA) VT_Max (V) @ IT (A) IH_Min (mA) IH_Typ (mA) IH_Max (mA) CO_Typ (pF) CO_Max (pF) VPP (10/700μs @ 40Ω) (V) Download
FTSP0080ABN SMA Bi-Polar   6 1 6 15 800 4 2.2 50 / / 20 / 4000
FTSP0080SBC SMB Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 30 4000
FTSP0080SC SMB Bi-Polar   6 1 6 15 800 4 2.2 30 / / / 60 6000
FTSP0080TAC SMA Bi-Polar   6 1 6 15 800 4 2.2 10 / / 10 / 2000
FTSP0080TBA  SMA Bi-Polar   6 1 6 15 800 4 2.2 10 / / 15 / 4000
FTSP0080TBC SMA Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 30 4000
FTSP0080TBD SMB Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 50 8000
FTSP0080TCC SMA Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 50 6000
FTSP0220SB SMB Bi-Polar   18 1 18 30 800 4 2.2 30 / / / 50 4000
FTSP0220SC SMB Bi-Polar   18 1 18 30 800 4 2.2 30 / / / 60 6000
FTSP0300SB SMB Bi-Polar   25 1 25 40 800 4 2.2 30 / / / 50 4000
FTSP0300SC SMB Bi-Polar   25 1 25 40 800 4 2.2 30 / / / 60 6000
FTSP0640SA SMA Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 35 4000
FTSP0640SB SMB Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 40 4000
FTSP0640SC SMB Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 60 6000
FTSP0720SA SMA Bi-Polar   65 1 65 87 800 4 2.2 120 / / / 35 4000
FTSP0720SB SMB Bi-Polar   66 1 66 87 800 4 2.2 120 / / / 40 4000
FTSP0720SC SMB Bi-Polar   65 1 65 87 800 4 2.2 120 / / / 50 6000
FTSP0900SA SMA Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 35 4000
FTSP0900SB SMB Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 40 4000
FTSP0900SC SMB Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 50 6000
FTSP1100SA SMA Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 35 4000
FTSP1100SB SMB Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 35 4000
FTSP1100SC SMB Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 50 6000
FTSP1101SB SMB Uni-Polar   95 1 95 130 800 4 2.2 100 / / / 70 4000
FTSP1101SD SMB Uni-Polar   95 1 95 130 800 4 2.2 50 / / / 150 8000
FTSP1300SA SMA Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 35 4000
FTSP1300SB SMB Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 35 4000
FTSP1300SC SMB Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 50 6000
FTSP1301SB SMB Uni-Polar   115 1 115 140 800 4 2.2 100 / / / 70 4000
FTSP1301SD SMB Uni-Polar   115 1 115 140 800 4 2.2 100 / / / 150 8000
FTSP1500SA SMA Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 35 4000
FTSP1500SB SMB Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 35 4000
FTSP1500SC SMB Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 45 6000
FTSP1800SA SMA Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 35 4000
FTSP1800SB SMB Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 35 4000
FTSP1800SC SMB Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 45 6000
FTSP2300SA SMA Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 25 4000
FTSP2300SB SMB Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 30 4000
FTSP2300SC SMB Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 40 6000
FTSP2600SA SMA Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 25 4000
FTSP2600SB SMB Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 30 4000
FTSP2600SC SMB Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 40 6000
FTSP3100SA SMA Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 25 4000
FTSP3100SB SMB Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 25 4000
FTSP3100SC SMB Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 35 6000
FTSP3100SE SMB Bi-Polar   275 1 275 350 800 4 2.2 50 / / / 80 6000
FTSP3500SA SMA Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 20 4000
FTSP3500SB SMB Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 25 4000
FTSP3500SC SMB Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 35 6000
FTSP3800SB SMB Bi-Polar   340 1 340 450 800 4 2.2 120 / / / 25 4000
FTSP3800SC SMB Bi-Polar   340 1 340 450 800 4 2.2 120 / / / 35 6000
FTSP3800SM SMA Bi-Polar   340 1 340 450 800 4 2.2 120 / / / 10 2000
FTSP4200SB SMB Bi-Polar   400 1 400 520 800 4 2.2 / / 100 / 35 4000
FTSP4200SC SMB Bi-Polar   400 1 400 520 800 4 2.2 / / 100 / 35 6000
FTSP4200SD SMB Bi-Polar   400 1 400 520 800 4 2.2 / / 100 / 40 8000
FTSP4200SE SMB Bi-Polar   400 1 400 520 800 4 2.2 / / 100 / 55 /
FTSP4800SC SMB Bi-Polar   440 1 440 580 800 4 2.2 / / 100 / 50 6000
WGP8800SC SMB Bi-Polar   750 5 750 1000 800 4 2.2 / 50 / / 50 6000
WJIP5024G SOT23-6     24 1 24 / / 3.5 1 / 40 / / 3 /
WJIP61089B SOP-8     170 5 170 / / / / 150 / / / 100 3000
WJIP61089H SOP-8     170 5 170 / / / / 150 / / / 170 6000
WJIP61089L SOP-8     170 5 170 / / / / 150 / / / 70 2000
WJIP61089Q SOP-8     170 5 170 / / / / 150 / / / 70 2000
WJIP61089S SOP-8     170 5 170 / / / / 150 / / / 70 2000
WJIP7015L1 SOP-8     ±8 ±4 ±8 ±15 ±300 / / ±30 / / 30 / 2000
WJIP7038L1 SOP-8     ±28 ±4 ±28 ±38 ±300 / / ±30 / / 23 / 2000
WJIP83121D SOP-8     100 10 100 / / / / / / 300 / 100 10000
WJP15SB SMB Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 50 4000
WP0080CES SMA Bi-Polar   6 1 6 15 800 4 2.2 30 / / / 130 6000
WP0080DM SOD-123FL Bi-Polar   6 5 6 15 800 4 2.2 10 / / / 10 2000
WP0080EC TO-92-2L Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 80 6000
WP0080LB DO-15 Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 130 4000
WP0080SD SMB Bi-Polar   6 1 6 15 800 4 2.2 50 / / / 150 8000
WP0080SDT SMC Bi-Polar   6 1 6 15 800 4 2.2 50 / / 500 / /
WP0080SDT-3L SMC-3 Bi-Polar   6 5 6 15 800 4 2.2 50 / / / 700 /
WP0150SD SMB Bi-Polar   15 1 15 25 800 4 2.2 30 / / / 150 8000
WP0150SD-A SMB Bi-Polar   12 1 12 16 800 4 2.2 / 10 / / 150 8000
WP0150SDT SMC Bi-Polar   15 1 15 25 800 4 2.2 50 / / 250 / /
WP0150SDT-3L SMC-3 Bi-Polar   15 5 15 25 800 4 2.2 50 / / / 400 /
WP0220A SMA Bi-Polar   22 5 22 30 800 4 2.2 / / 50 / 100 2000
WP0220LB DO-15 Bi-Polar   15 1 15 30 800 4 2.2 50 / / / 120 4000
WP0220SB SMB Bi-Polar   18 1 18 30 800 4 2.2 30 / / / 80 4000
WP0220SC SMB Bi-Polar   18 1 18 30 800 4 2.2 30 / / / 100 6000
WP0300AMBS SMB Bi-Polar   25 1 25 40 800 4 2.2 / / 50 / 100 4000
WP0300DM SOD-123FL Bi-Polar   25 5 25 40 800 4 2.2 / 50 / / 60 2000
WP0300LB DO-15 Bi-Polar   25 1 25 40 800 4 2.2 50 / / / 120 4000
WP0300SA SMA Bi-Polar   25 1 25 40 800 4 2.2 / 50 / / 60 3000
WP0300SB SMB Bi-Polar   25 1 25 40 800 4 2.2 30 / / / 80 4000
WP0300SBA SMB Bi-Polar   28 1 28 40 800 4 2.2 50 / / / 70 4000
WP0300SC SMB Bi-Polar   25 1 25 40 800 4 2.2 30 / / / 100 6000
WP0321FAP SOD-123FL Uni-Polar   28 1 28 40 200 1.8 2.2 / / 30 / 80 /
WP0321SAP SMA Uni-Polar   28 1 28 40 200 1.8 2.2 / / 30 / 80 /
WP0330FA SMC Bi-Polar   30 1 30 40 800 4 2.2 50 / / 400 / /
WP0401FAP SOD-123FL Uni-Polar   33 1 33 48 200 1.8 2.2 / / 30 / 80 /
WP0401SAP SMA Uni-Polar   33 1 33 48 200 1.8 2.2 / / 30 / 80 /
WP0500SC SMB Bi-Polar   39 1 39 48 800 4 2.2 20 / / / 60 6000
WP0501FAP SOD-123FL Uni-Polar   53 1 53 60 200 1.8 2.2 / / 30 / 80 /
WP0501SAP SMA Uni-Polar   53 1 53 60 200 1.8 2.2 / / 30 / 80 /
WP0640EC TO-92-2L Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 200 6000
WP0640LB DO-15 Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 80 4000
WP0640SA SMA Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 50 4000
WP0640SB SMB Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 80 4000
WP0640SC SMB Bi-Polar   58 1 58 77 800 4 2.2 120 / / / 200 6000
WP0640SD SMB Bi-Polar   58 1 58 77 800 4 2.2 50 / / / 150 8000
WP0640SE SMB Bi-Polar   58 1 58 77 800 4 2.2 50 / / / 150 6000
WP0641DM SOD-123FL Bi-Polar   60 1 60 80 200 4 2.2 100 / / / 100 2000
WP0641FAP SOD-123FL Uni-Polar   60 1 60 80 200 1.8 2.2 / / 30 / 80 /
WP0641SAP SMA Uni-Polar   60 1 60 80 200 1.8 2.2 / / 30 / 80 /
WP0720EC TO-92-2L Bi-Polar   65 1 65 87 800 4 2.2 120 / / / 150 6000
WP0720LB DO-15 Bi-Polar   66 1 66 87 800 4 2.2 120 / / / 75 4000
WP0720SA SMA Bi-Polar   65 1 65 87 800 4 2.2 120 / / / 50 4000
WP0720SB SMB Bi-Polar   66 1 66 87 800 4 2.2 120 / / / 75 4000
WP0720SC SMB Bi-Polar   65 1 65 87 800 4 2.2 120 / / / 150 6000
WP0720SD SMB Bi-Polar   65 1 65 87 800 4 2.2 50 / / / 150 8000
WP0721FAP SOD-123FL Uni-Polar   75 1 75 88 200 1.8 2.2 / / 50 / 80 /
WP0721SBP SMA Uni-Polar   75 1 75 88 200 1.8 2.2 / / 50 / 150 /
WP0900LB DO-15 Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 70 4000
WP0900SA SMA Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 50 4000
WP0900SB SMB Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 70 4000
WP0900SC SMB Bi-Polar   75 1 75 98 800 4 2.2 120 / / / 140 6000
WP0900SD SMB Bi-Polar   75 1 75 98 800 4 2.2 50 / / / 140 8000
WP0901FAP SOD-123FL Uni-Polar   85 1 85 100 200 1.8 2.2 / / 50 / 80 /
WP0901SBP SMA Uni-Polar   85 1 85 100 200 1.8 2.2 / / 50 / 150 /
WP1100LB DO-15 Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 70 4000
WP1100SA SMA Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 45 4000
WP1100SB SMB Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 70 4000
WP1100SC SMB Bi-Polar   90 1 90 130 800 4 2.2 120 / / / 110 6000
WP1100SD SMB Bi-Polar   90 1 90 130 800 4 2.2 50 / / / 110 8000
WP1101FAP SOD-123FL Uni-Polar   95 1 95 115 200 1.8 2.2 / / 50 / 80 /
WP1101SBP SMA Uni-Polar   95 1 95 115 200 1.8 2.2 / / 50 / 150 /
WP1300LB DO-15 Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 60 4000
WP1300SA SMA Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 45 4000
WP1300SB SMB Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 60 4000
WP1300SC SMB Bi-Polar   120 1 120 160 800 4 2.2 120 / / / 100 6000
WP1300SD SMB Bi-Polar   120 1 120 160 800 4 2.2 50 / / / 100 8000
WP1301DM SOD-123FL Bi-Polar   120 1 120 160 800 5 1 120 / / / 35 2000
WP1301FAP SOD-123FL Uni-Polar   120 1 120 140 200 1.8 2.2 / / 50 / 80 /
WP1301SBP SMA Uni-Polar   120 1 120 140 200 1.8 2.2 / / 50 / 150 /
WP1500LB DO-15 Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 55 4000
WP1500SA SMA Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 45 4000
WP1500SB SMB Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 55 4000
WP1500SC SMB Bi-Polar   140 1 140 180 800 4 2.2 120 / / / 90 6000
WP1500SD SMB Bi-Polar   140 1 140 180 800 4 2.2 50 / / / 90 8000
WP1800LB DO-15 Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 50 4000
WP1800SA SMA Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 35 4000
WP1800SB SMB Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 50 4000
WP1800SC SMB Bi-Polar   170 1 170 220 800 4 2.2 120 / / / 90 6000
WP1800SD SMB Bi-Polar   170 1 170 220 800 4 2.2 50 / / / 90 8000
WP1801DM SOD-123FL Bi-Polar   170 1 170 250 800 5 1 120 / / / 35 2000
WP1801FAP SOD-123FL Uni-Polar   175 1 175 210 200 1.8 2.2 / / 50 / 80 /
WP1801SBP SMA Uni-Polar   175 1 175 210 200 1.8 2.2 / / 50 / 150 /
WP2300EC TO-92-2L Bi-Polar   190 1 190 260 800 4 2.2 150 / / / 60 6000
WP2300LB DO-15 Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 50 4000
WP2300SA SMA Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 35 4000
WP2300SB SMB Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 50 4000
WP2300SC SMB Bi-Polar   190 1 190 260 800 4 2.2 120 / / / 80 6000
WP2300SD SMB Bi-Polar   190 1 190 260 800 4 2.2 50 / / / 80 8000
WP2501FAP SOD-123FL Uni-Polar   220 1 220 250 200 1.8 2.2 / / 50 / 80 /
WP2501SBP SMA Uni-Polar   220 1 220 250 200 1.8 2.2 / / 50 / 150 /
WP2600EC TO-92-2L Bi-Polar   220 1 220 300 800 4 2.2 150 / / / 60 6000
WP2600LB DO-15 Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 45 4000
WP2600SA SMA Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 35 4000
WP2600SB SMB Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 45 4000
WP2600SC SMB Bi-Polar   220 1 220 300 800 4 2.2 120 / / / 80 6000
WP2600SD SMB Bi-Polar   220 1 220 300 800 4 2.2 50 / / / 70 8000
WP3100EC TO-92-2L Bi-Polar   275 1 275 350 800 4 2.2 150 / / / 50 6000
WP3100LB DO-15 Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 45 4000
WP3100SA SMA Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 35 4000
WP3100SB SMB Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 45 4000
WP3100SC SMB Bi-Polar   275 1 275 350 800 4 2.2 120 / / / 70 6000
WP3100SD SMB Bi-Polar   275 1 275 350 800 4 2.2 50 / / / 60 8000
WP3500DB SOD-123FL Bi-Polar   320 5 320 400 800 4 2.2 / 10 / / 50 4000
WP3500DM SOD-123FL Bi-Polar   280 5 280 400 800 4 2.2 10 / / / 50 2000
WP3500EC TO-92-2L Bi-Polar   320 1 320 400 800 4 2.2 150 / / / 50 6000
WP3500LB DO-15 Bi-Polar   320 1 320 400 800 4 2.2 150 / / / 40 4000
WP3500SA SMA Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 35 4000
WP3500SB SMB Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 40 4000
WP3500SC SMB Bi-Polar   320 1 320 400 800 4 2.2 120 / / / 65 6000
WP3500SD SMB Bi-Polar   320 1 320 400 800 4 2.2 50 / / / 60 8000
WP3800SB SMB Bi-Polar   340 1 340 450 800 4 2.2 120 / / / 40 4000
WP3800SC SMB Bi-Polar   340 1 340 450 800 4 2.2 120 / / / 65 6000
WP3800SD SMB Bi-Polar   340 1 340 450 800 4 2.2 50 / / / 60 8000
WP4200DB SOD-123FL Bi-Polar   400 5 400 520 800 4 2.2 / 10 / / 50 4000
WP4200SBL SMB Bi-Polar   400 1 400 520 800 4 2.2 / / 6 / 35 4000
WP4200TB SMA Bi-Polar   400 5 400 520 800 4 2.2 / / 100 / 35 4000
WP4200TC SMA Bi-Polar   400 5 400 520 800 4 2.2 / / 100 / 35 6000
To be the Global Innovation Leader in Discrete Devices ! Driving the global electronics industry towards green and efficient development with innovative design and advanced technology.
Contact US
  • 2nd Floor,Building A3,Zhongjiao Science And Technology Park,Longgang District,Shenzhen,Guangdong,China
  • 0086-755-82682846
  • sales@worldgj.com
  • www.worldgj.com
  • Online Message
Product
Quality&System
About US
Contact US
COPYRIGHT © 2023 Shenzhen World Industrial Co.,Ltd ALL RIGHTS RESERVED. 粤ICP备17045933号   Support: Fangwei
Follow US
